Sam HDMI

HDMI Interface for the Sam Coupe

PLEASE READ BEFORE ORDERING!!

The Sam Coupe HDMI interface consists of four main parts. The first is an RGBtoHDMI 12bit Board which was designed by Hoglet67 (The project can be found here: https://github.com/hoglet67/RGBtoHDMI). These boards are being constructed by me but using the design and software from the project which has full support for the Sam Coupe.

The second part is an interface board. This was designed by me and acts as a simple bridge to connect the RGBtoHDMI board up to the Sams external interface port. This board also offers a 3.5mm audio jack to allow you to connect powered speakers. Please note that the audio itself is NOT transmitted with the HDMI signal (This is a limitation of the RGBtoHDMI Project).

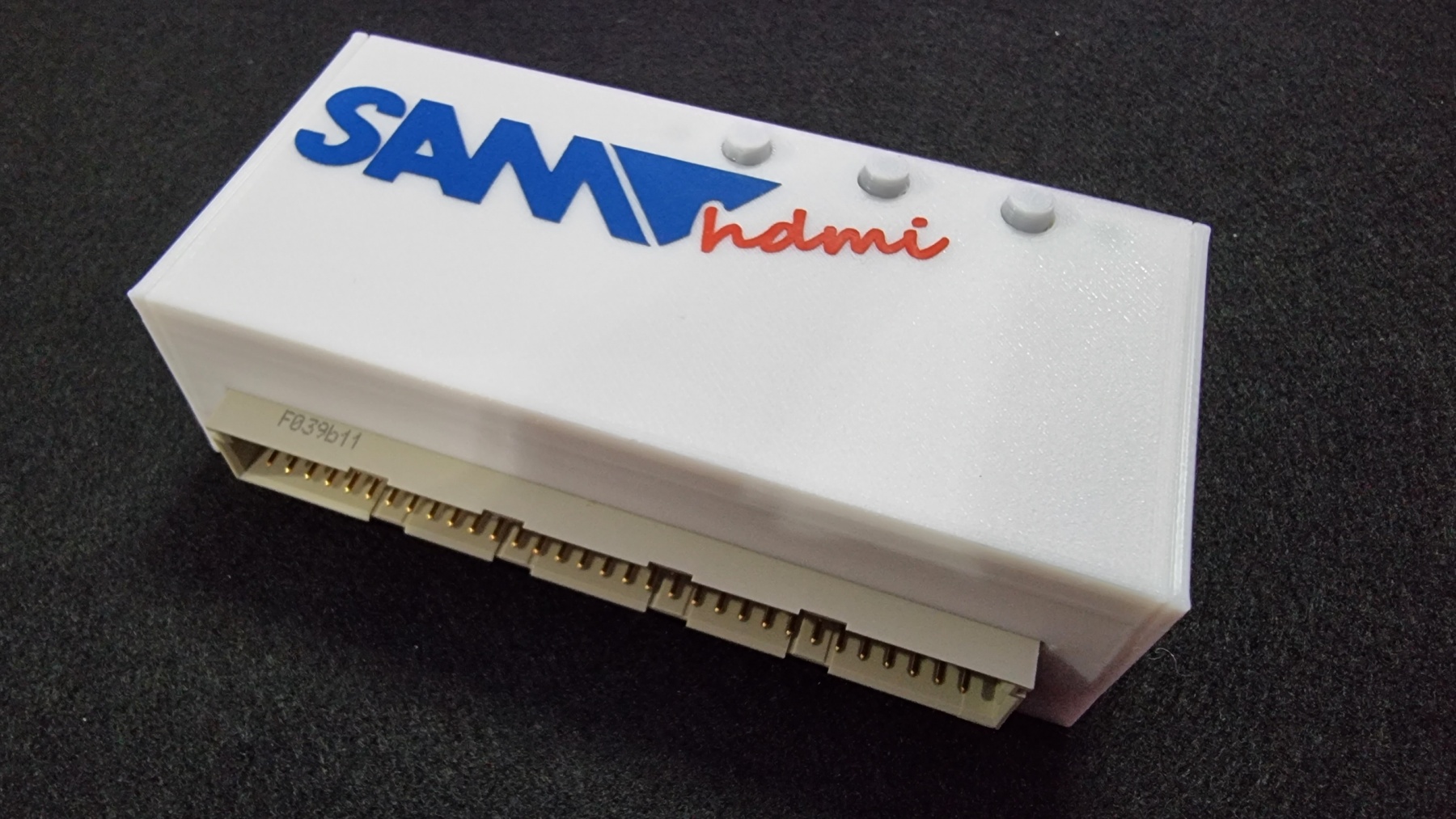

The third part of the kit is a 3D-printed case designed by me to hold all of the required components in a neat and professional-looking package.

The final part is a Raspberry Pi zero.

You will also need an HDMI cable to connect the interface to your TV. The Raspberry Pi Zero uses the mini HDMI connector so you will either need a mini HDMI to HDMI cable or a mini HDMI to HDMI adapter.

Optional Hardware (but may be required): The interface has an internal jumper that allows you to select between powering from the Sam itself or via an external USB power supply. Depending on the power supply you use on your Sam and also if you are running other additional interfaces such as the Trinity board. You may need to power this board from a USB power supply.

If you wish to use additional interfaces alongside the HDMI board you will need an expansion port adapter to allow you to connect multiple interfaces. These can be purchased from www.samcoupe.com (two-way euro connector expansion card) or they are sometimes listed via eBay (two-way expansion card for sam coupe)
