CPS1 – Street Fighter II Repair – Part 1
About 1 year ago, I was gifted a couple of arcade boards and an arcade control panel by a friend of mine. Sadly, this friend has recently passed away, so I have now promoted a couple of projects involving these parts to the top of my priority list.
I started by connecting up the two arcade boards (Street Fighter II and Caveman Ninja) to see what we get out of them. The Caveman Ninja board had no output at all, but the Streetfighter II board actually had output to the screen, so I decided to start with this board as I figured it would be the easier repair (Yeah, right!).
Upon powering up the board, the game ran through the RAM tests, which all passed. But then it just hung on that screen.
I figured I’d start off with giving the board a good clean up, removing all of the socketed chips, sanding down the pins and giving them all a dose of de-oxit.
The only change in behavior was that the board no longer worked. At this point, I realised my rookie mistake where I had put one of the PAL chips the wrong way around. The writing printed on the chip was upsidedown compared to the others, and I just didn’t check the notch. Very disappointing, but luckily not unrecoverable.
The code for all of the PALs has been reverse-engineered for this board (https://wiki.pldarchive.co.uk/index.php?title=Street_Fighter_2_Champion_Edition), so after I had ordered some GAL16V8s, I programmed one of them with the code and was finally back to square one.
So where do we go from here? Ideally, I need to know what the board is actually trying to do at the point it is crashing. It was at this point that I had an idea. Everybody has surely heard of MAME (Multi Arcade Machine Emulator), which allows you to run Arcade ROMs on many different platforms. However, it also has some advanced features that most people would not have used before, one of which is an internal debugger, which allows you to disassemble the ROM code and also step through the code one instruction at a time, whilst also setting breakpoints and monitoring for specific conditions.
Running the ROM file in MAME, I could see that after the RAM tests, the screen goes blank and then changes the text to Street Fighter II. My board doesn’t get this far, so I needed to concentrate on the code that runs after the last RAM check, but before the screen blanks.
After a bit of playing around, I found a nice breakpoint to set at address 754. This is a loop in the code that prints a character to the screen. So with a breakpoint set here, every time I start the emulator running, it will print one more character to the screen and then pause. This will allow me to step through until the last OK message is written to the screen and then see what happens next.
I could see that during the RAM tests, all it was doing was writing a character into RAM and then reading it back and comparing it. I don’t think this is the most conclusive RAM test, but I guess it’s good enough to find basic RAM issues. I did do a quick check here and manually modified the area of memory so the compare would fail. It responded by marking that RAM test as “NG” (Not Good), and then froze the game. I didn’t need to do this bit as all the tests were passing, but I thought it was interesting.
The next thing I wanted to do was to try to find out where my board was stopping. I had a thought that if I could insert a reboot command into the actual ROM code at various points, I could then burn this to an EPROM and stick it in my board. If my board went into a reboot loop, then I would know that it was getting as far as executing that command.
68000 Assembly is not a speciality of mine, so I used AI to help here (sometimes it does actually have some uses!). My first attempts used a jump instruction to jump to address 0 and reset the board, but this had one small issue in that the opcode was 3 words long (6 bytes). The issue with this is that I could only insert it where another 6-byte opcode existed; otherwise, I would be overwriting other code. Asking AI for another way of rebooting the board, it suggested the opcode “ILLEGAL” which has a hex code of 4AFC. With this being 1 word long, I could insert it anywhere in the ROM without breaking anything.
I gave it a quick test and confirmed that my board did indeed reboot when it hit this command. I continued going through the code in chunks and added my reboot at various points to see how far my code was executing.
I eventually homed in on the exact part of the code where the board was stopping.
The culprit was an opcode stored at the address 1A0:
MOVE $2000, SR
Giving AI another chance to show its uses. I asked what this command did. It turns out this command essentially changes the Status Registers on the CPU. With the value of $2000, it would achieve the following:
- Set the CPU to Supervisor mode
- Enables interrupts
- Clears all condition flags
- Disabled Trace mode.
Out of those options, I already had a hunch of which one to concentrate on. Going back to the MAME debugger, after the command at 1A0, the next instruction executed was at address 5C6. But there was no jump instruction, so why did it suddenly jump to that address? One logical answer is that an interrupt was triggered.
A bit more research showed that on the 68K CPU, when an interrupt is triggered, it will jump to the address held in the interrupt vector relating to that interrupt. These values are located in the address range 60 to $7C, and looking at that area in the ROM file, I could see 05C6 listed, which confirmed to me that an interrupt was indeed being triggered that was causing the code to jump to address 5C6. The problem now is that my board never triggers that interrupt.
The 68k CPU has 3 interrupt pins, which are inputs. Each one of these can either be high or low, giving us 3 binary bits, and a total of 8 possible combinations.
According to the schematics for the CPS1 board, one of these interrupts is tied to 5V, which I confirmed with my scope. That left two other interrupt pins. I monitored both of these on my scope, and both of them remained permanently high.
The interrupt signal is an active low signal, so with all these staying high, no interrupt would ever be triggered, and my board would just sit there waiting for this signal. I traced the Interrupt pins on my board back to a 74LS74, which is a dual positive-edge-triggered flip-flop. I took a look at the datasheet for this IC and probed the input pins. One of the pins had a regular pulse to it, and looking at the schematics, this signal was the vertical blank signal.
With this input being triggered, the output pin going to the CPU should also be triggered. So it looks like the first issue to be identified is actually a faulty 74LS chip.
One last thing I could try before wrapping up this part of the repair was to replicate the interrupt being triggered. I could do this by simply shorting this signal to ground. Since the vertical blank signal was a continuous pulse. I replicated this by just tapping a ground wire onto the interrupt pin. With this, I was able to “run” the game frame by frame.
There is another issue in that the background graphics are corrupted. But that will be a problem for another day, after I have got the board at least running the code.
Stay tuned for part 2 once the new 74LS74 chips have arrived
Impromptu Toastrack Repair
Every now and again I like to have a move around in my retro room and possibly swap out some systems. Well I decided that to represent the Spectrum, I would get one of my 128K Spectrums connected up. I grabbed one off the shelf and plugged it all in ready to sit down and have a play. Only to find out, this one had become faulty!
When turning it on using the RGB scart cable, the picture was pretty much black. But this wasn’t a dead Spectrum, as if you looked closely you could see that the computer itself was running fine.

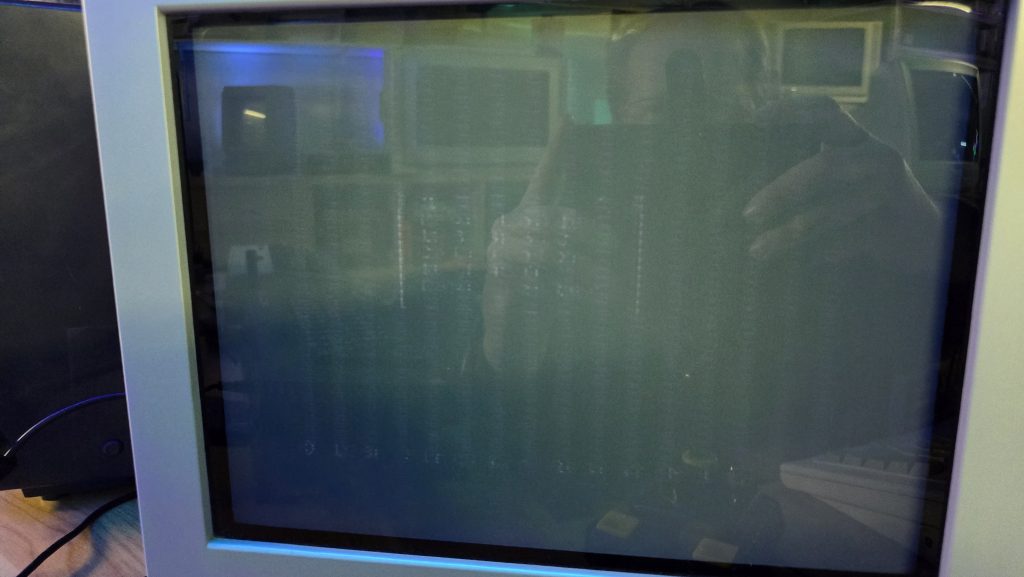

It’s not very clear in the picture but in the center of the screen you can just make out the 128k menu.
This then was more of an issue with the video signal, specifically the blanking signal on the scart cable. Just to rule out a bad cable I tested my other toastrack and that displayed fine.
There is sometimes an issue with Spectrums and certain TVs when using the RGB scart cable, and there is a quick mod you can do to increase the blanking voltage which helps in this situation. But I didn’t think that was what was going on here, and I was pretty sure I had already done that mod on this system at some point.
I opened it up and checked the blanking voltage which was at 1.45v. Yeah, there is something not happy here. Another common fault with these machines which would match the issue I was seeing, is the two transistors, TR4 and TR5.
Taking TR4 off the board and giving it a test, confirmed my suspicions.

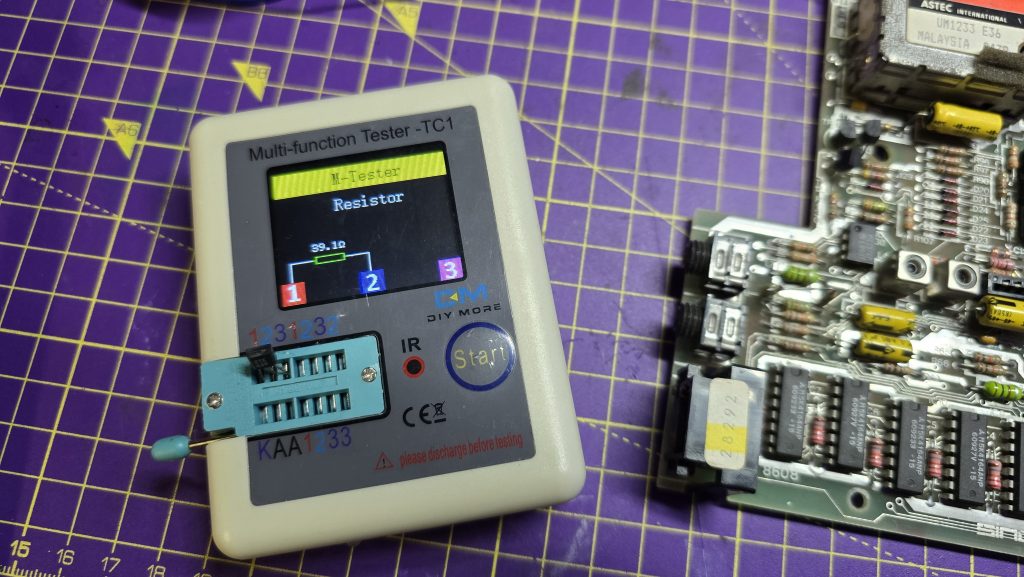

That doesn’t look much like a transistor to me! So, a quick trip to eBay and a few days waiting for some replacements to arrive.
I did test TR5, and it actually tested OK. But I replaced it anyway to be safe. Sometimes, if you only replace TR4, TR5 can end up damaging the new replacement.
Anyway, we are now back to having a decent voltage on the blanking circuit, and yes, I had already done the blanking mod on this one.
Time to put it back together and give it a test!
All working 😀
Unfortunately, that used up my spare time this evening, so i don’t actually get to sit down and play a game. Slightly, will have to put his adventure on hold until next time.
Spectrum 48K Repair
Today I had a bit of spare time, so decided to take a look at a Spectrum 48K for one of my work colleagues. It had unfortunately been plugged in using an Acorn Electron PSU as he mixed up the power supplies.
The Acorn Electron uses a 19v ac power supply, where as the Spectrum uses a 9V DC supply. As you can imagine, the poor Speccy did not appreciate this very much.
First job was to check the voltage regulator. As expected, this was dead, so I swapped this out with a new 7805 regulator. Now we were getting a stable 5v output from the regulator.

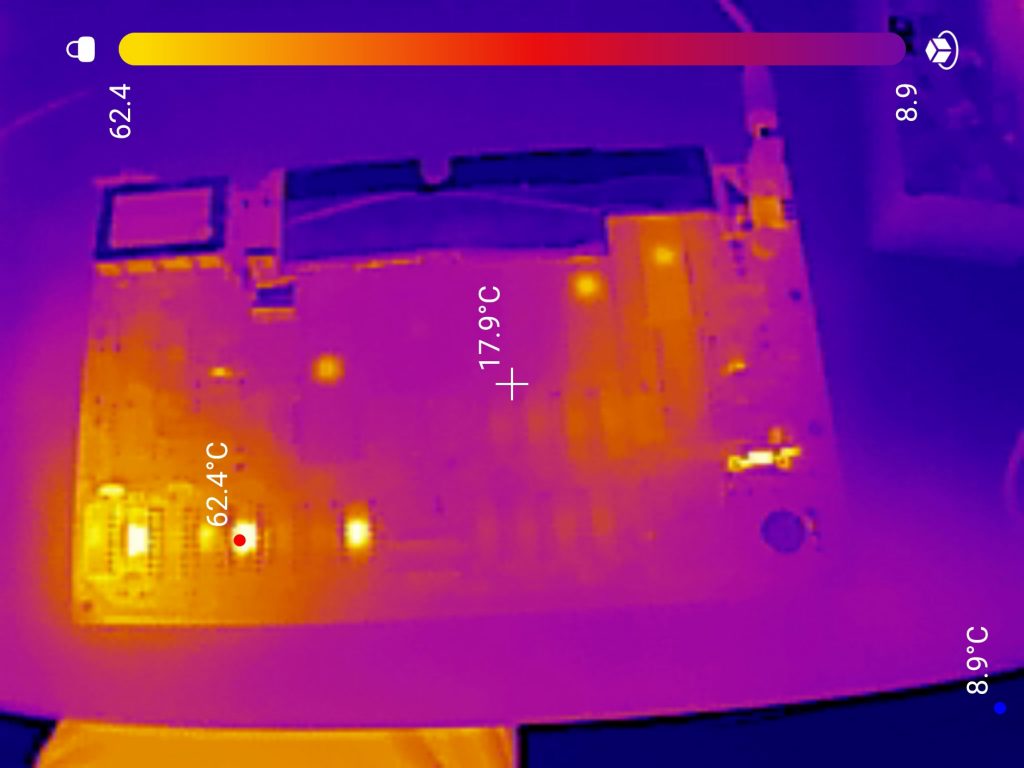

Next step was to dig out the thermal camera and see what the system looked like powered up, I didn’t hook it up to a TV yet as I was pretty confident there were more issues I would need to solve first.
I forgot to take a photo the frist time around, so the photo above is after I had already replaced the far left RAM chip which was also getting very hot.

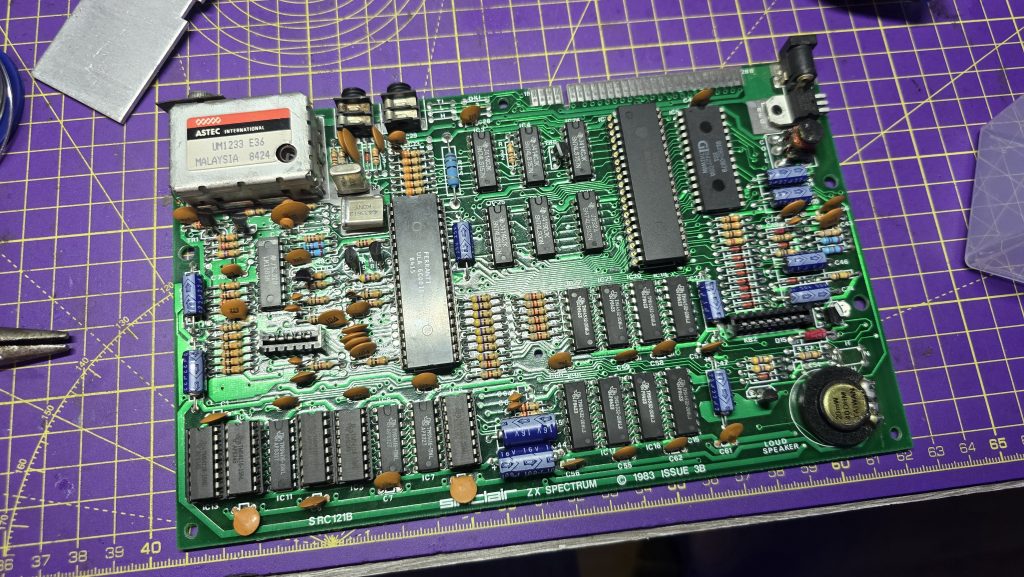

There were 5 chips in total that were getting pretty toasty. I socketed all of these and tested the removed chips, all of which tested faulty.

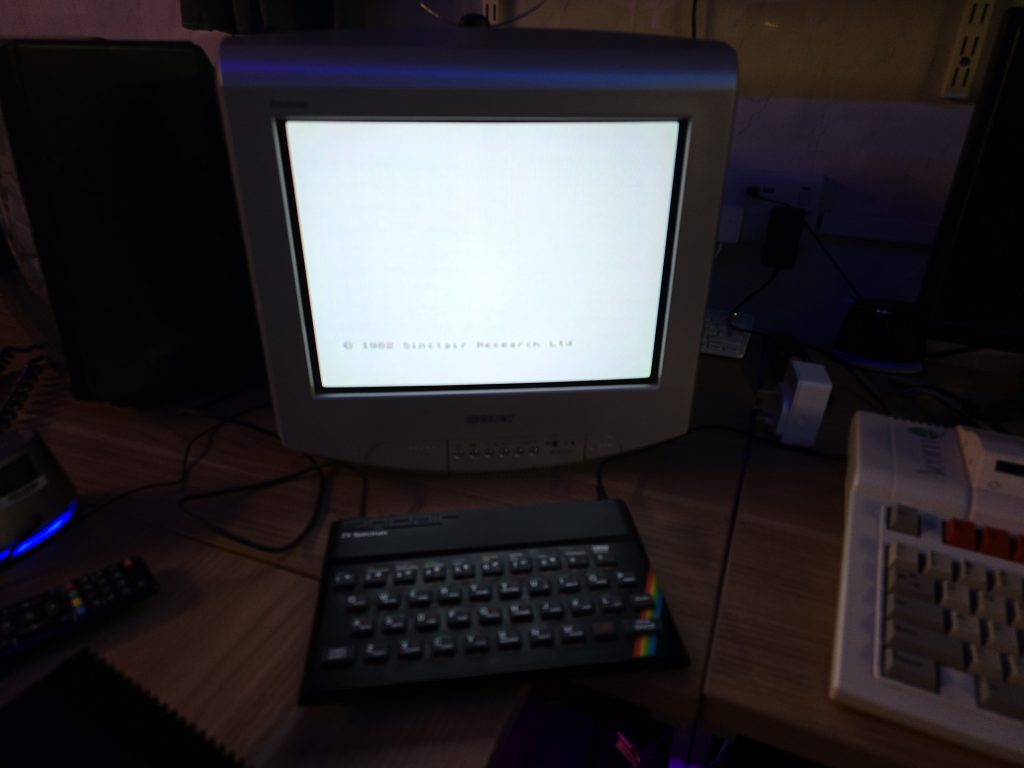

With the new RAM in place, I figured it was time to test the machine out. Even though no chips were getting hot now, some more of the RAM could have still been faulty.

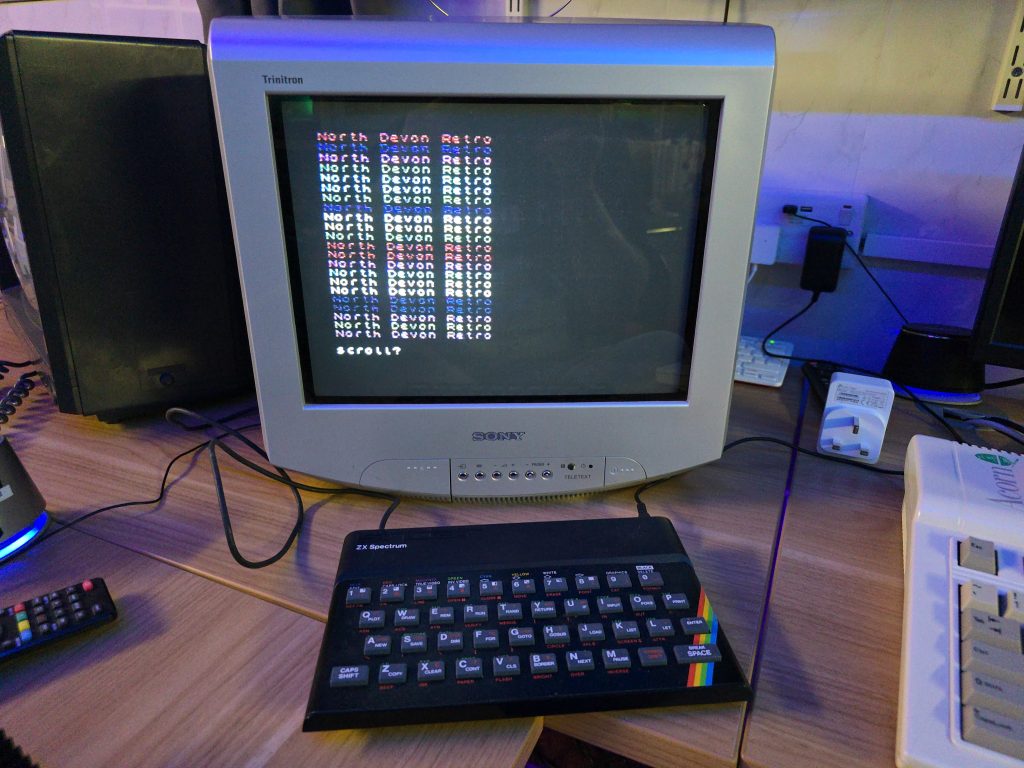

Luckily, In this case, that was not the case and the Speccy booted up, seemingly with no issues. I wrote a little BASIC program just to make sure it was executing code.

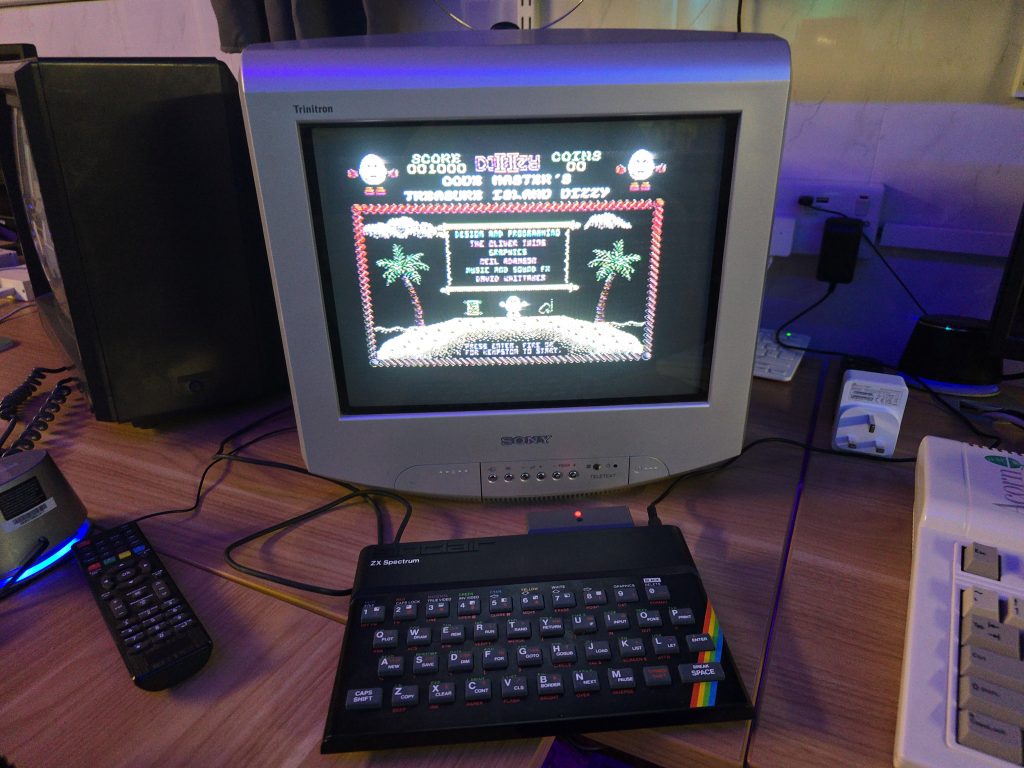

So far so good, but I wanted to test some games out. At this point I grabbed my DivMMC device and hooked it up. But here we ran into another issue. The DivMMC was not showing any life when connected to this computer. From previous experience I knew that the M1 line on the CPU can stop the DivMMC from working if it doesn’t function properly. And sure enough, I probed pin 27 on the Z80 and it was just sat there at around 2V, not doing anything.
Fortunately, I had some spare Z80s in stock, so i removed the Z80, and fitted a socket along with the replacement Z80.
Finally we have a fully functional Spectrum again 😀
The DX7 is fixed :)
Today was the day that the new 74LS374 arrived in the post. My first quick test was to put the new chip into my chip tester, and it confirmed the chip was ok whulst thebold one still reported faulty, so it looks like the chip tester might actually be trustworthy. I’ll be doing some more testing with this in the future as it could be a very handy tool.
Next step, was to get the new IC fitted and see if the issue was resolved. After powering it on i checked all the address lines and everything looked perfect! The welcome message showed up with no corruption and the DX7 was fully functional again 😀
The only thing left to do was test it out with a talented musician at the keys. Unfortunately I couldn’t find one, so you’ll have to put up with this!
Musical talents aside. I’m pretty happy with this repair, the DX7 is a great piece of music history, and it’s really nice to see it fully functional again.
I can add vintage synthesiser repair to my resume now 🫠
Unfortunately the DX7 has now got to go back to its owner, maybe I need to set up another watch list on eBay 🤔
Yamaha DX-7 Repair
Recently, a colleague at work contacted me and asked if I wanted some old computer stuff, including a 19″ CRT monitor and a colour Dot Matrix printer. This donation was gladly accepted, and whilst collecting my new toys, we found ourselves discussing various retro tech.
During this conversation, he mentioned that he had a Yamaha DX7 synthesiser that he had purchased, but it had a fault. It is very common for the batteries to die on these, which then leads to corrupted content in the RAM. In this case, though, the battery had already been replaced, but it didn’t fix the issue.
I did a quick Google search for the schematics, and essentially what I saw were the schematics of an 8-bit microcomputer. I said I’d take it back with me and take a look to see what was going wrong. Occasionally, the keyboard would appear to boot up, but would then hang, other times, the display would be garbled and completely unresponsive.
I knew the CPU was trying to run code because the display was occasionally showing correct text. Just to rule out a ROM chip issue, I downloaded the ROM file from the internet and compared it with the ROM stored on this chip. All looked ok, but I wrote the ROM to a new chip anyway and tested with the same result.
I then grabbed my scope and started probing the pins on the ROM chip to see what the address bus and data buses looked like. It was with the scope that I saw the issue, or at least the first issue. The data bus pins were all looking good with nice strong 5V peak-to-peak signals. But the first 8 address bus pins (0 to 7) were all a lot lower. Address bus pins 8-15 were all working as expected.
I dragged out the schematics and did a quick glance around for something that was only connected to the first 8 address bus pins. There was one very obvious candidate, a 74LS374 transparent latch IC that sat between the address bus and the ROM chip. Looking at the inputs of this IC showed they were nice and strong with no issues, but all the outputs were low, as shown in the picture above.
I suspected that this chip was faulty, but it could still be another IC on the board pulling the outputs low. So to test for that, I snipped one of the output pins so it was floating, then measured again. Exactly the same issue. At this point, I then removed the IC from the board, ready for the replacement chip to arrive.
Now off the board, I tested the chip in my chip tester just out of curiosity. It did indeed state that the device was faulty. I will be testing the new ones when they arrive, as I’ve not used this chip tester before, so not sure how much trust to put into it yet.
All I need to do now is await the delivery of the new IC and hopefully, this classic synth will be back up and running again. I will of course update everyone with the result, and hopefully this is the only fault 🙂
